PLX60
Power meets precision in the 6-ton class

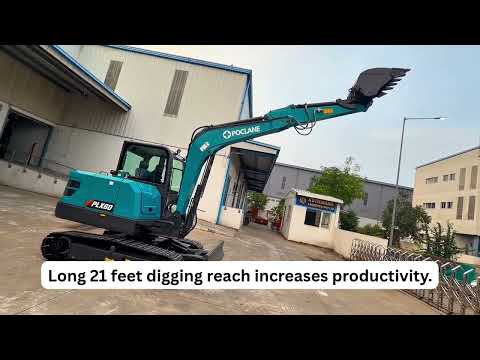

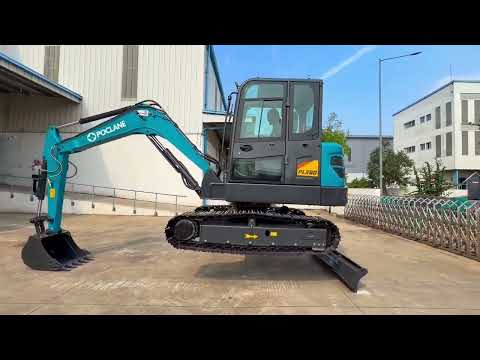

Meet the PLX60
Watch the full machine introduction.

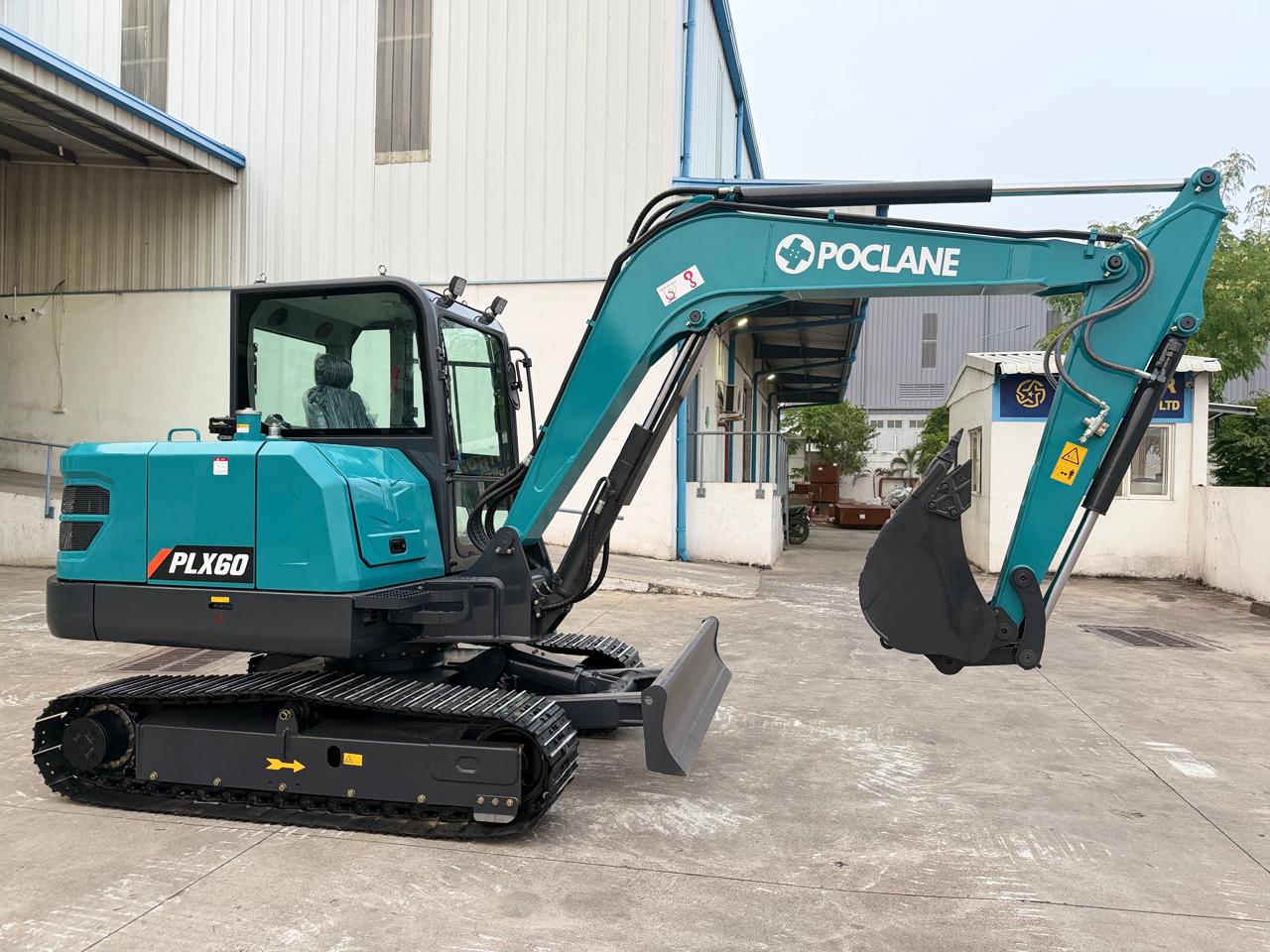

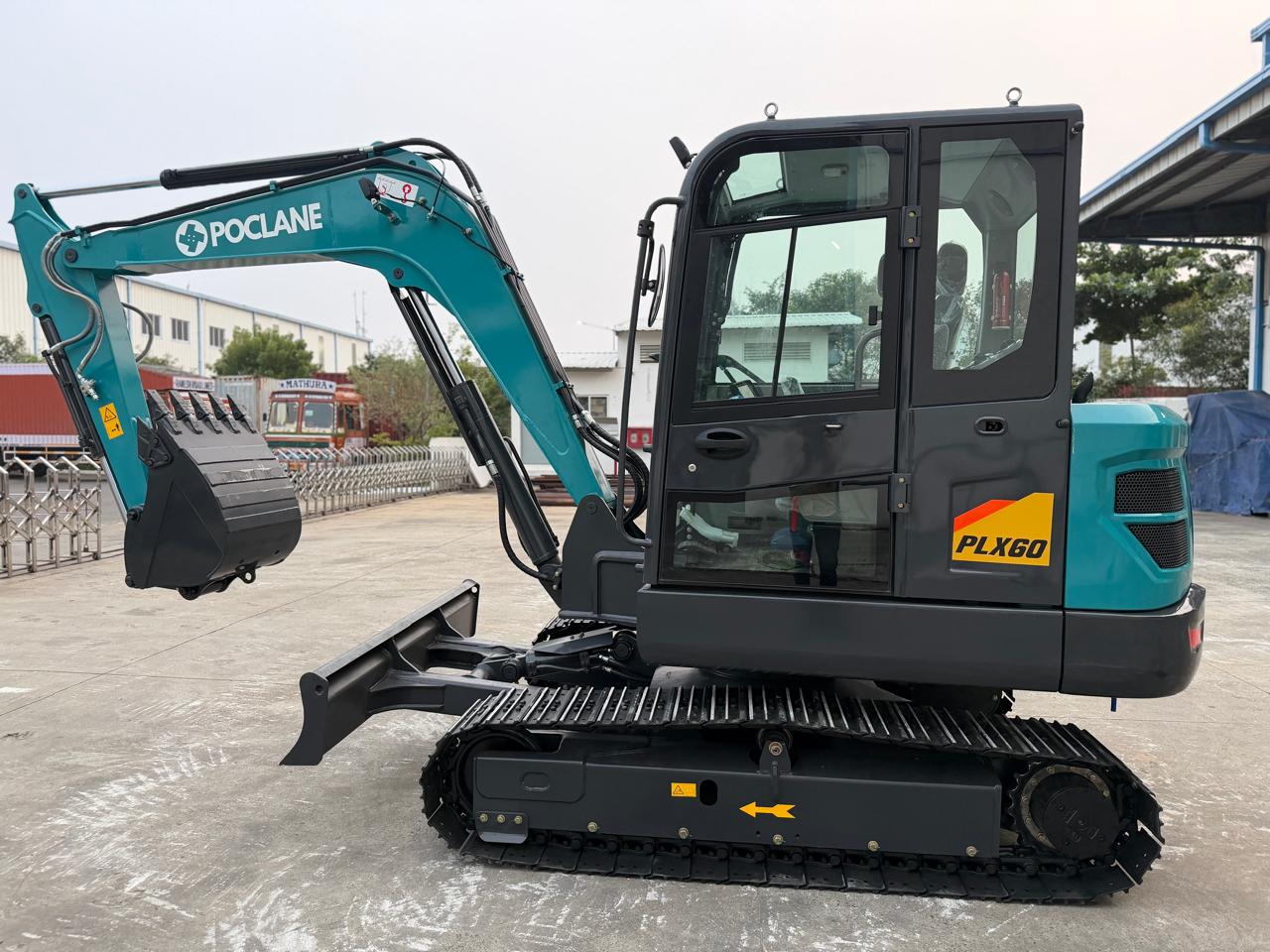

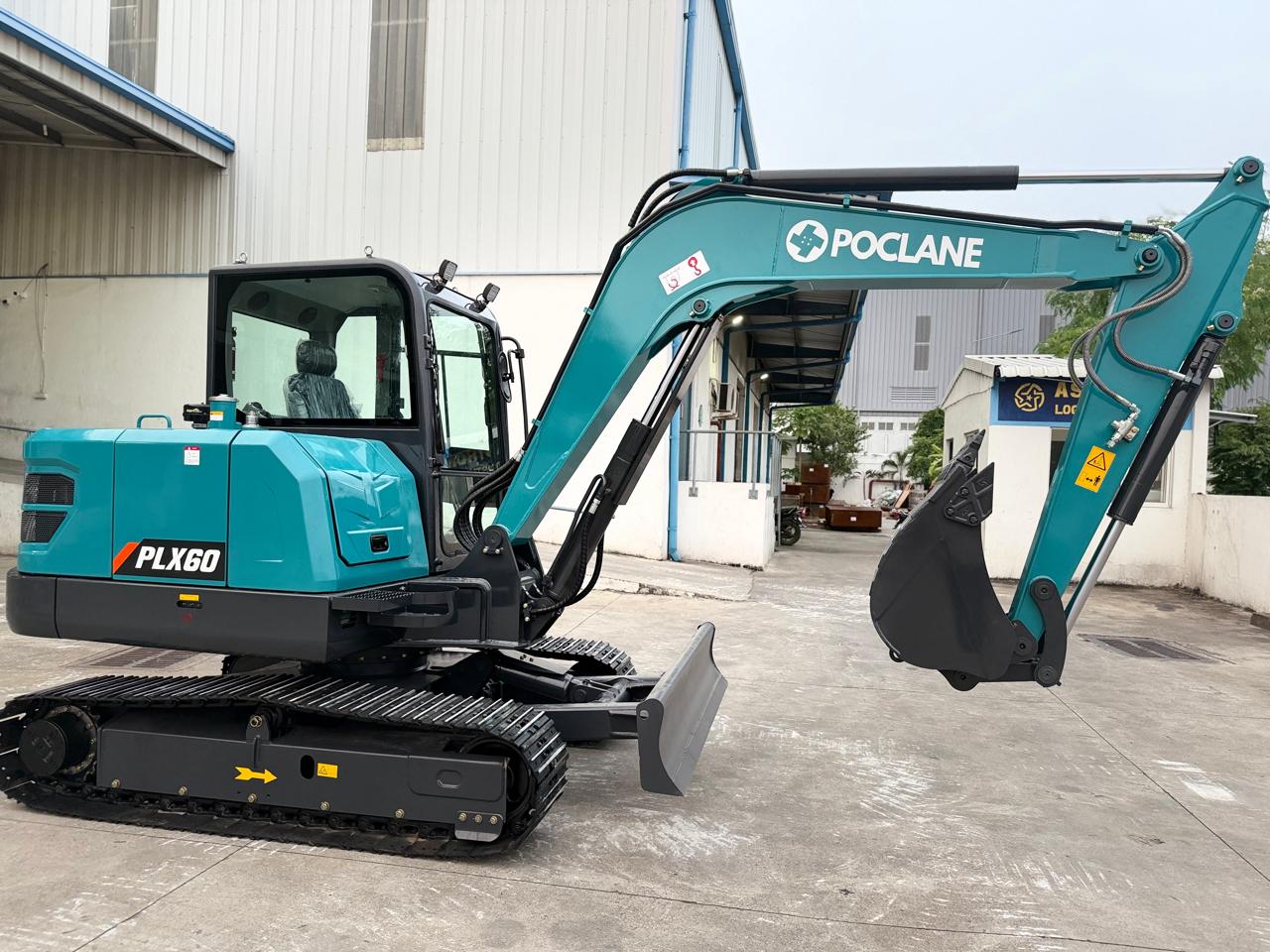

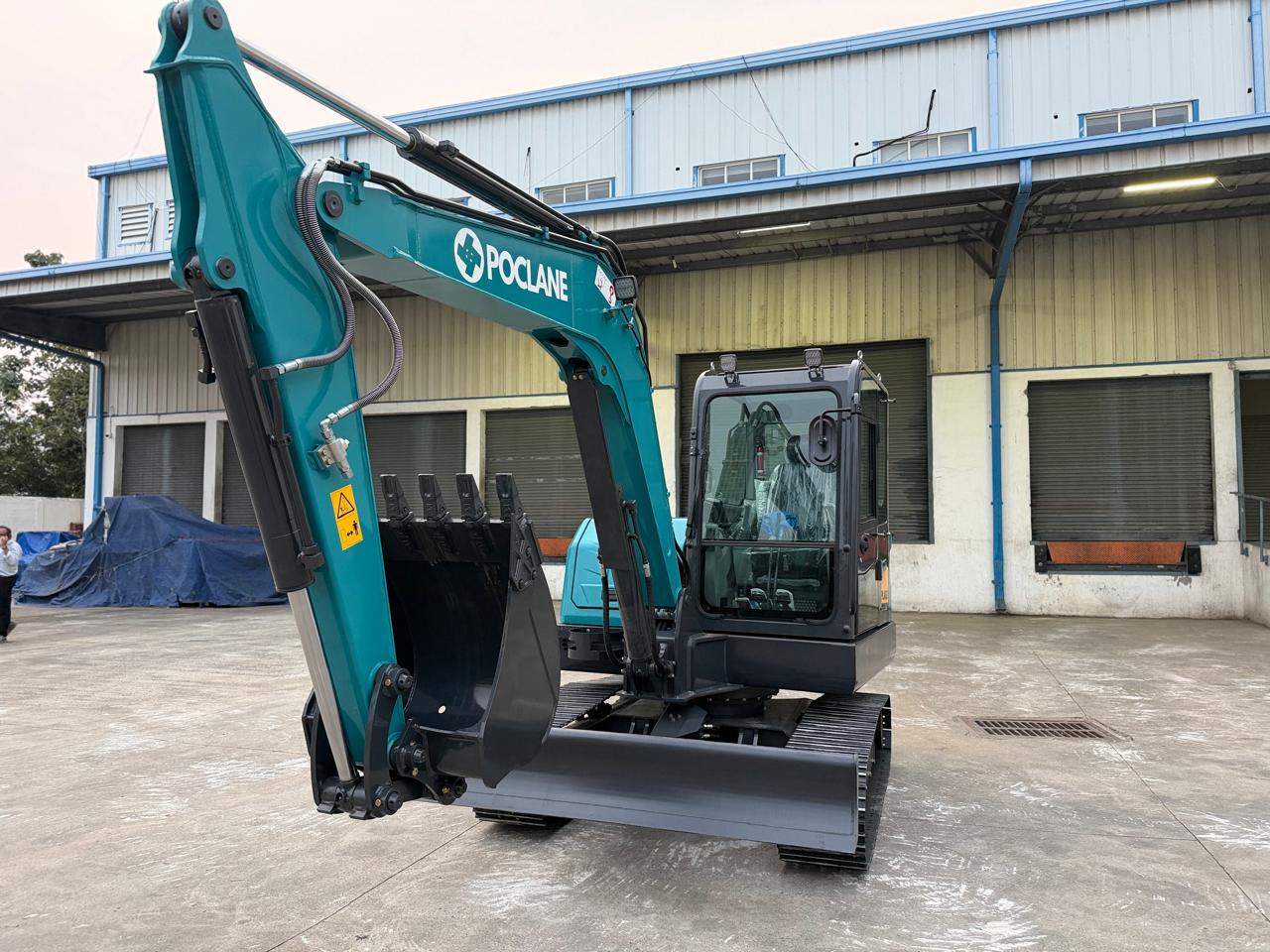

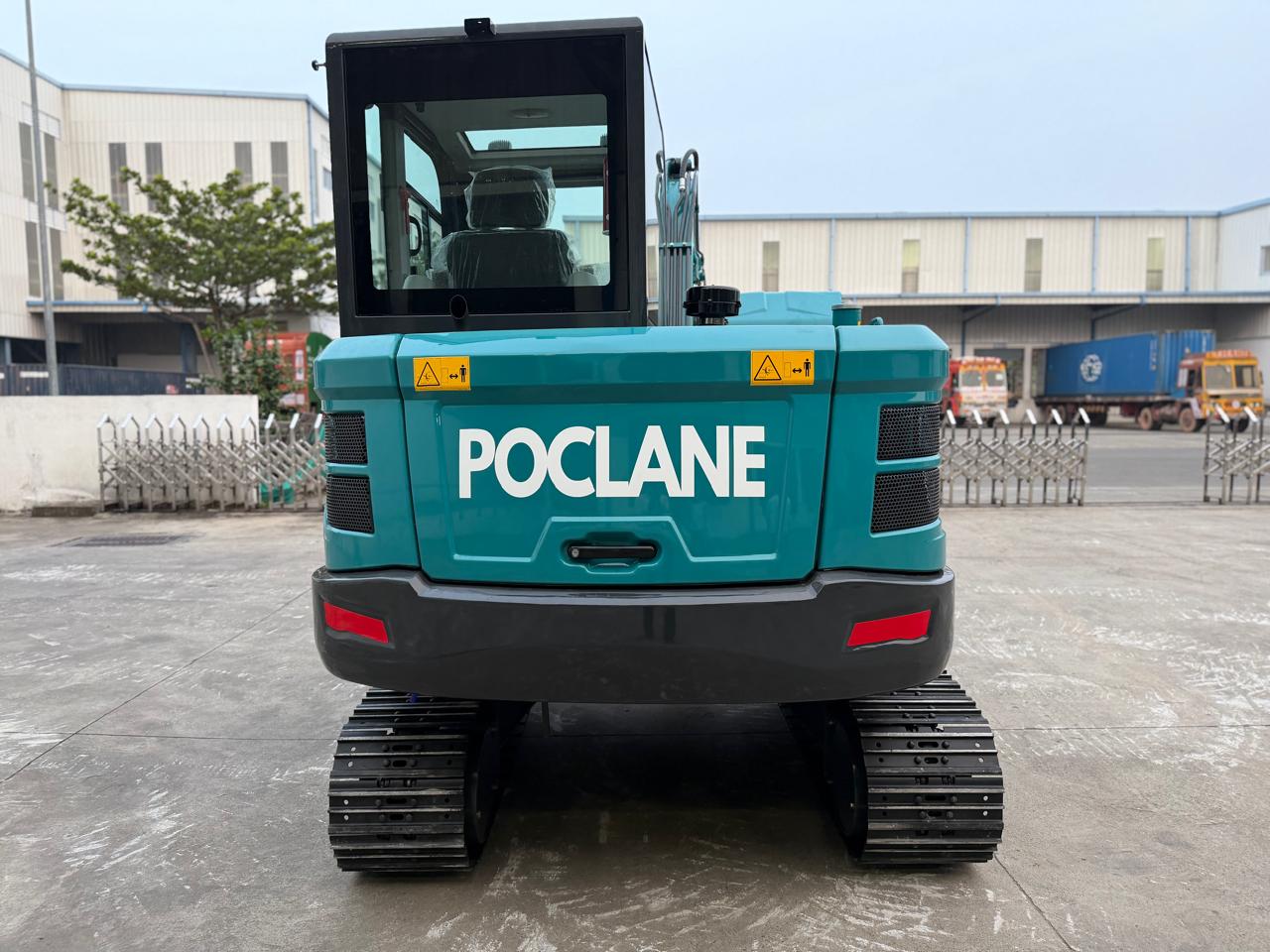

Gallery
The PLX60 up close — on site and in detail.
Anatomy of the PLX60
Scroll to walk through every component — each part, and what it does for you.
Operator cabin Enclosed AC · ROPS & FOPS · CE
All-round visibility and operator protection for safe, comfortable shifts.
The numbers that matter
Engineered for contractors who demand high performance, durability and efficiency. Kubota V2607T turbocharged engine, advanced load-sensing hydraulics, a premium AC cabin and 13 ft digging depth — built for construction, infrastructure and earthmoving.
Built for performance & profit
Every feature is engineered to lower your cost per hour and raise your output.

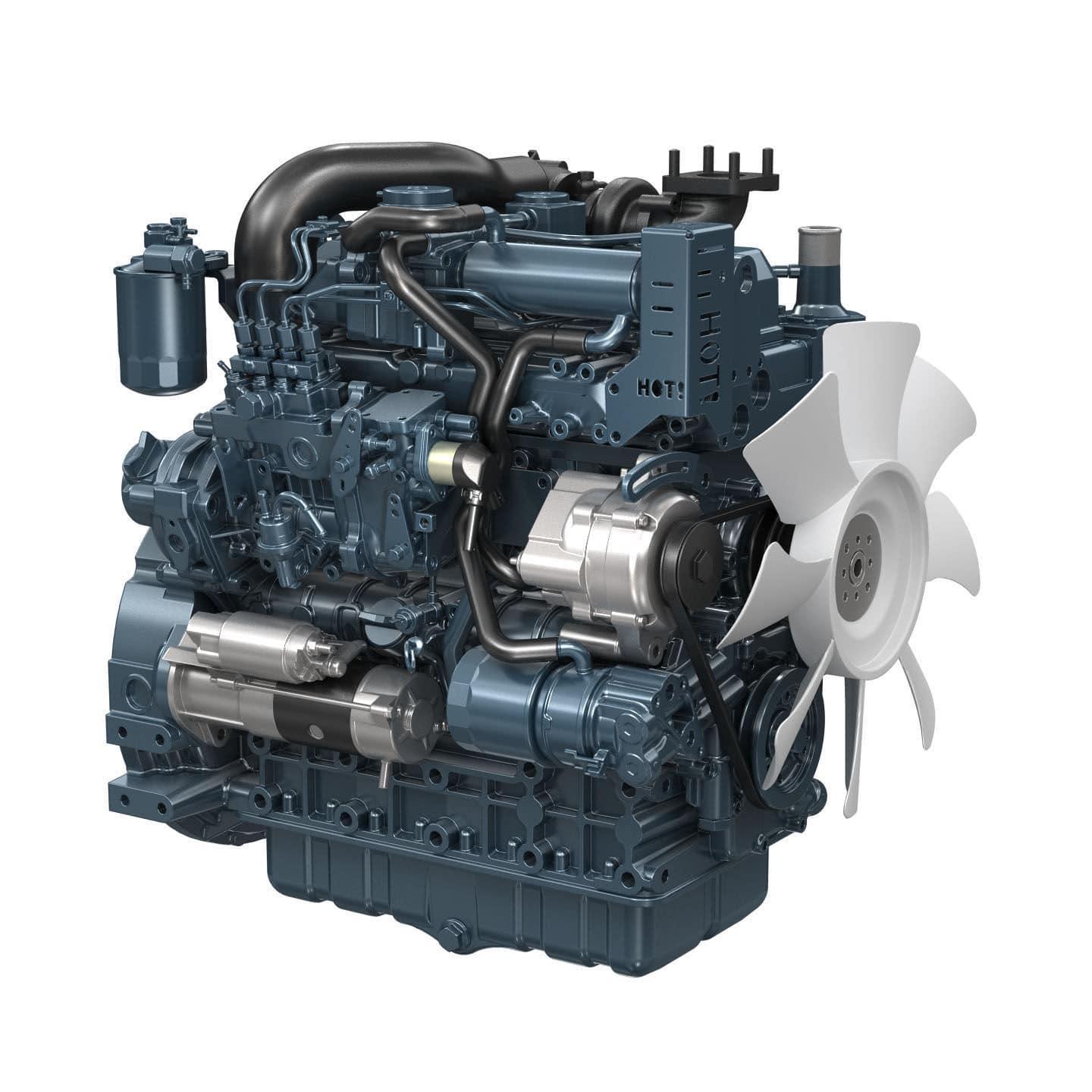

High-performance Kubota engine
Kubota V2607T turbocharged · 49.5 HP · 220 Nm @ 1600 RPM · 2.61 L. High torque at low RPM for efficient combustion and consistent power.

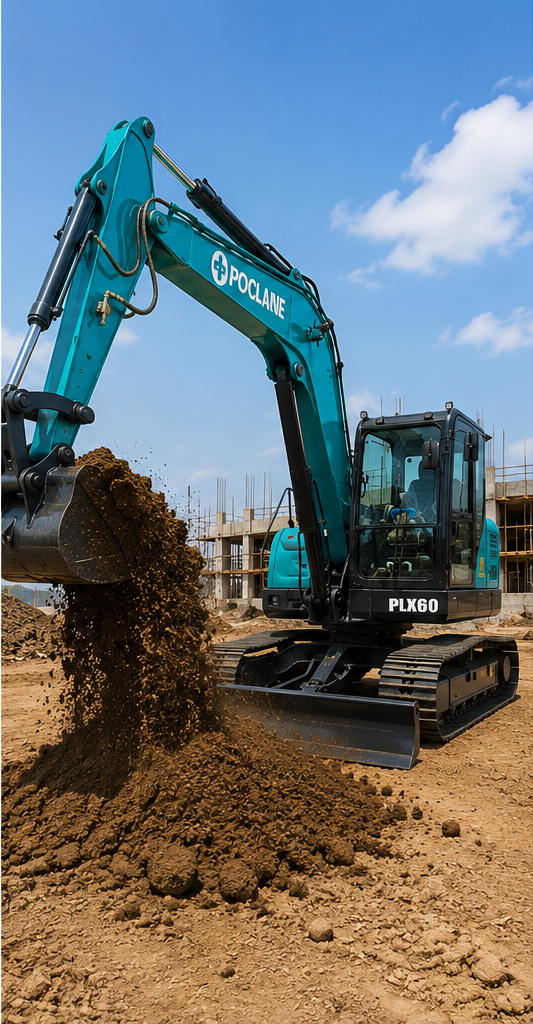

Superior digging & reach
13 ft digging depth · 21 ft maximum reach — covers wider working areas with deeper excavation for faster job completion.
Powerful breakout forces
Bucket 48 kN · Arm 29 kN · Traction 50 kN — high breakout force for efficient digging in hard soil and rocky conditions.
Advanced load-sensing hydraulics
Load-sensing system with a variable displacement pump (152 LPM) that adjusts flow to load demand for smooth, fuel-efficient operation.
Premium safety & certification
ROPS & FOPS certified cabin · European CE certified for maximum safety, compliance and higher machine value.
Operator comfort & smart controls
Fully enclosed AC cabin · 7-inch intelligent touchscreen · music system — reduces fatigue and increases working hours.
Full specifications
Engine & power
- Engine
- Kubota V2607T (turbo)
- Engine power
- 49.5 HP
- Torque
- 220 Nm @ 1600 RPM
- Displacement
- 2.61 L
Digging & force
- Max dig depth
- 13 ft
- Max reach
- 21 ft
- Bucket force
- 48 kN
- Arm force
- 29 kN
- Traction force
- 50 kN
Dimensions & weight

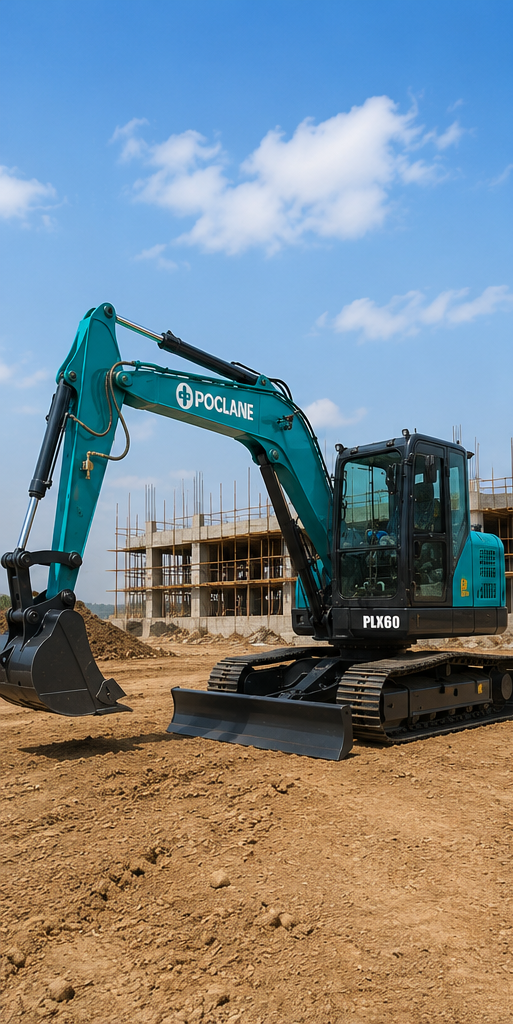

- Operating weight
- 5,960 kg

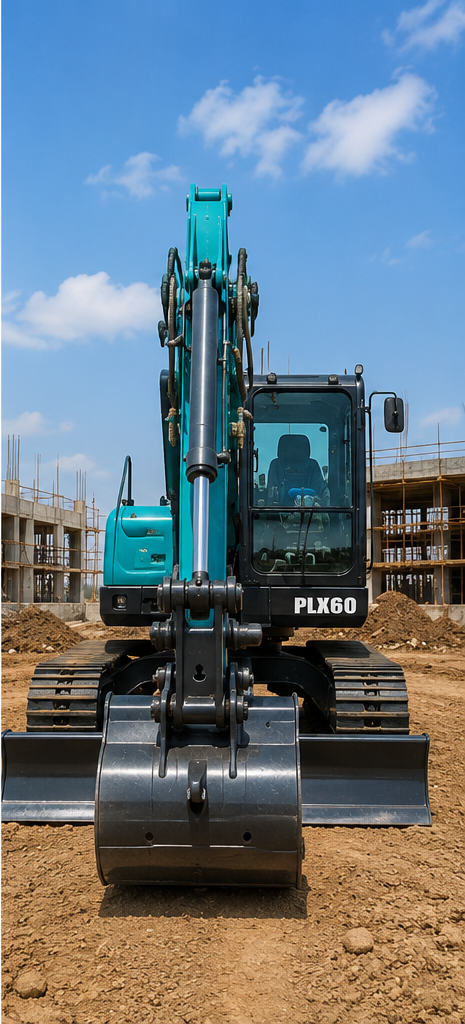

- Machine width
- 6 ft
Capacities
- Bucket capacity
- 0.22 m³
- Fuel tank
- 105 L
- Hydraulic tank
- 74 L
Hydraulics & controls
- Hydraulic pump
- Variable, 152 LPM
- Display
- 7-inch touchscreen + music
Cabin & safety
- Cabin
- Enclosed AC · ROPS & FOPS · CE
Explore the mini excavators

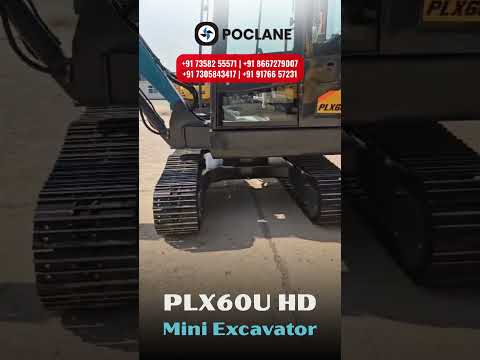

See it in action
