PLX20U
Power · Performance · Precision · Profit
Meet the PLX20U
Watch the full machine introduction.
Gallery

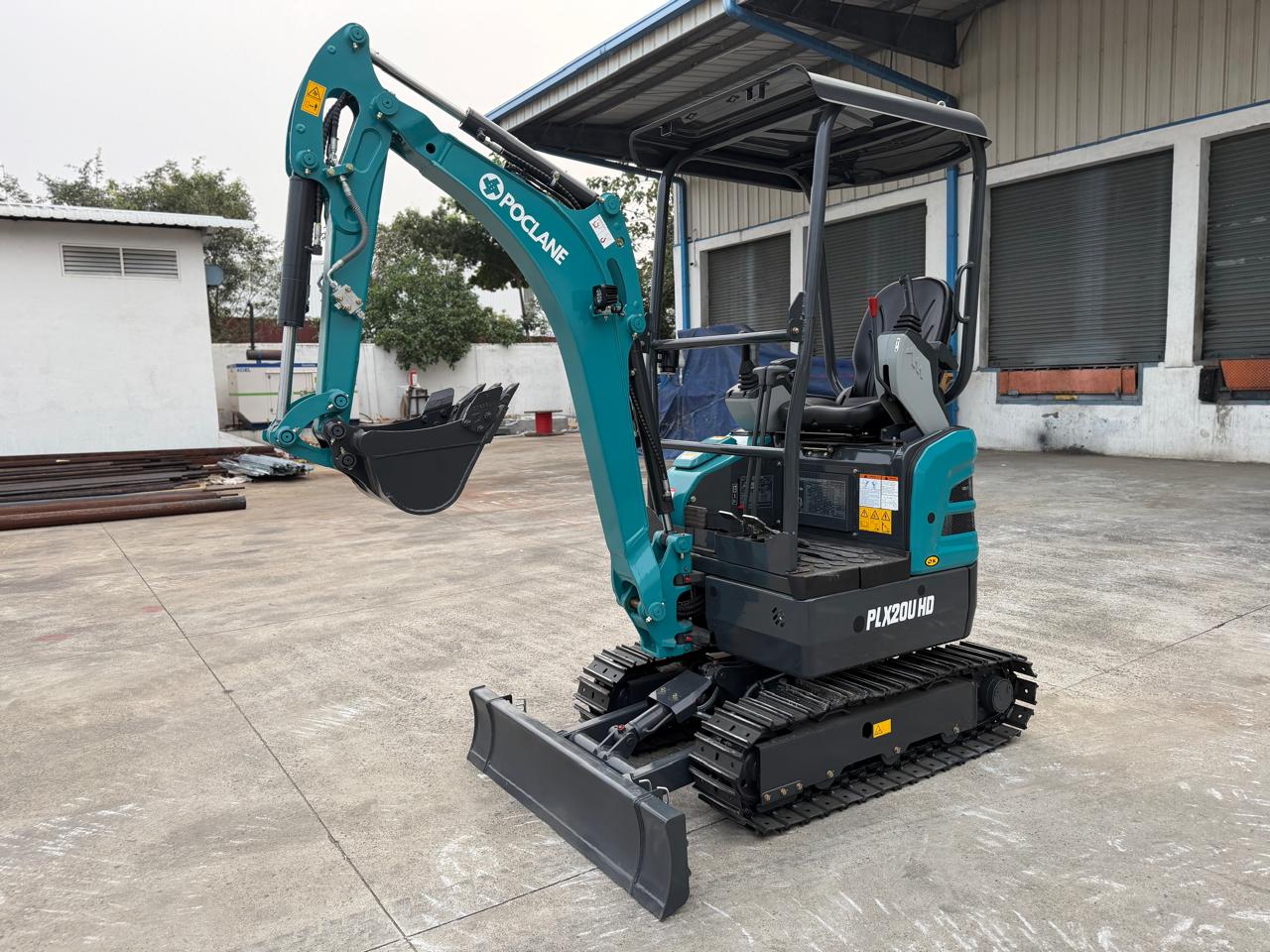

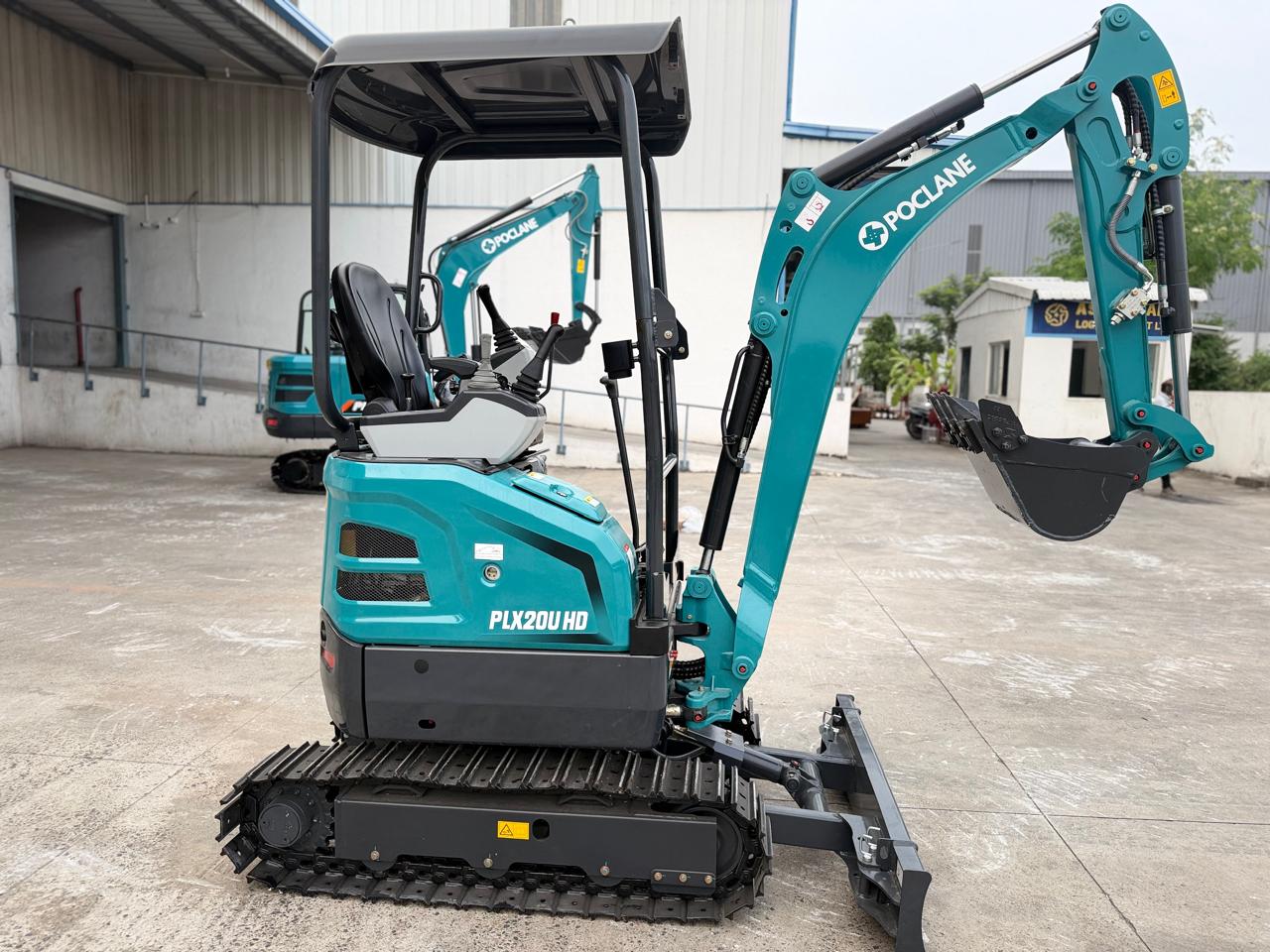

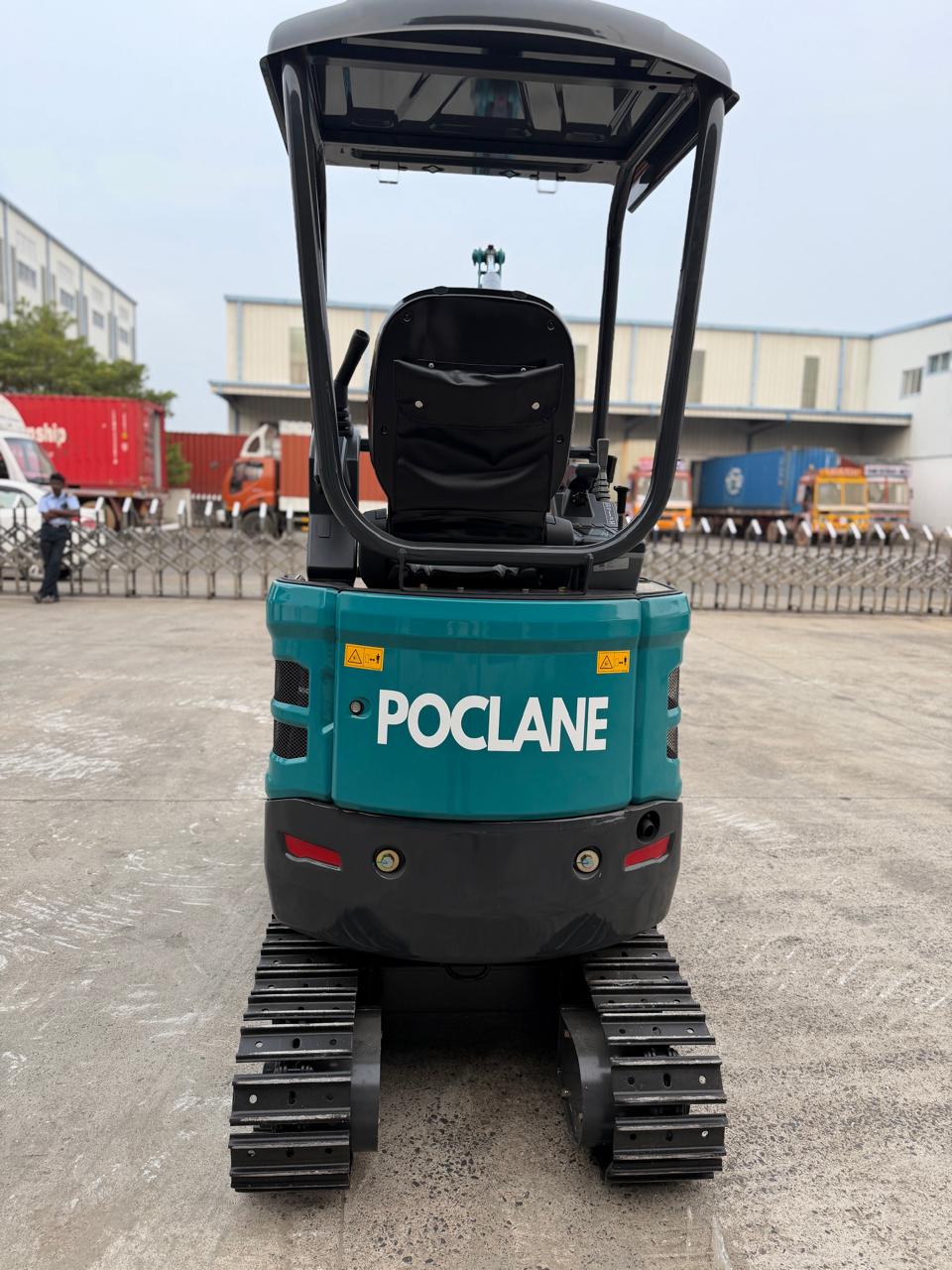

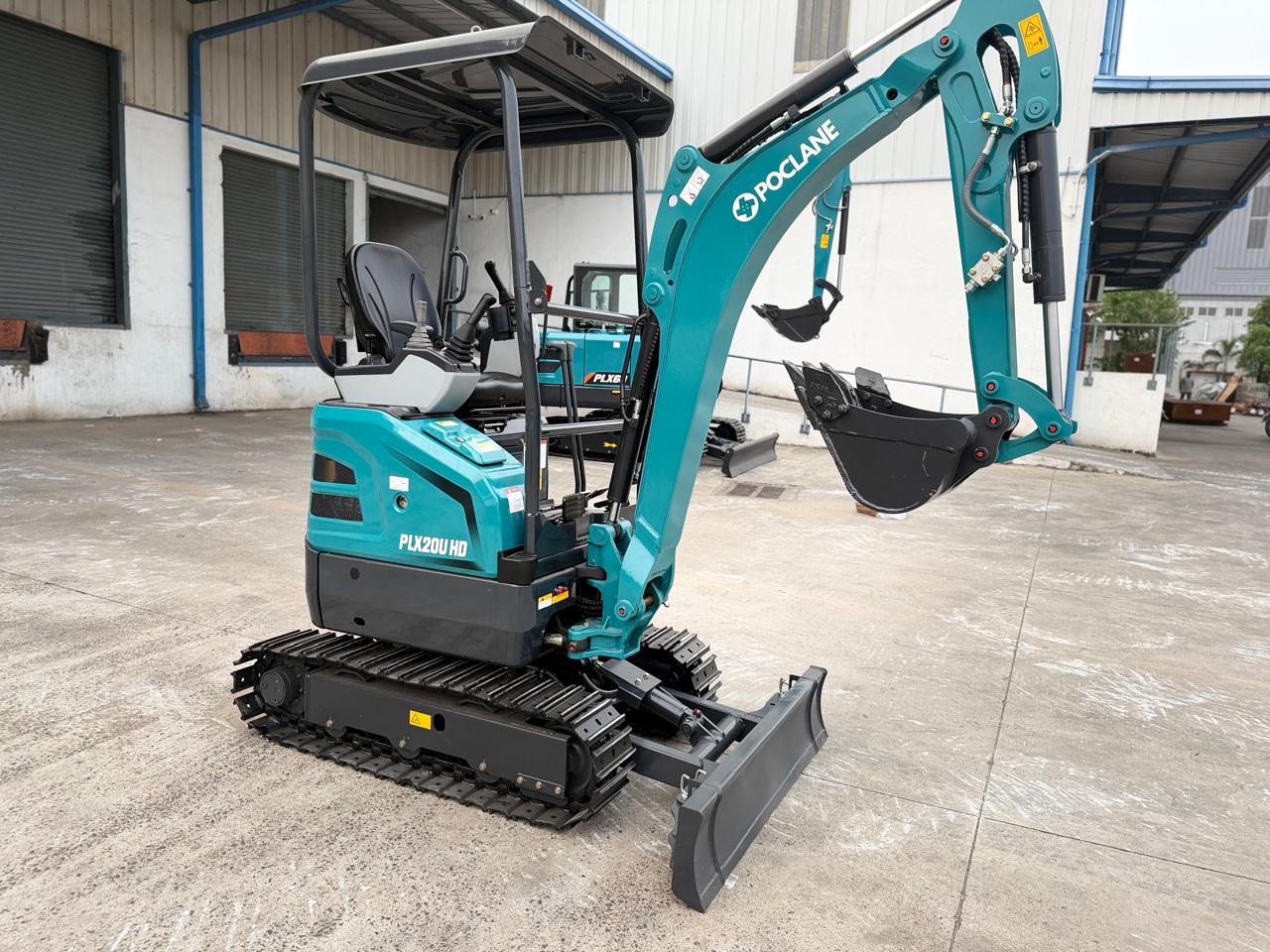

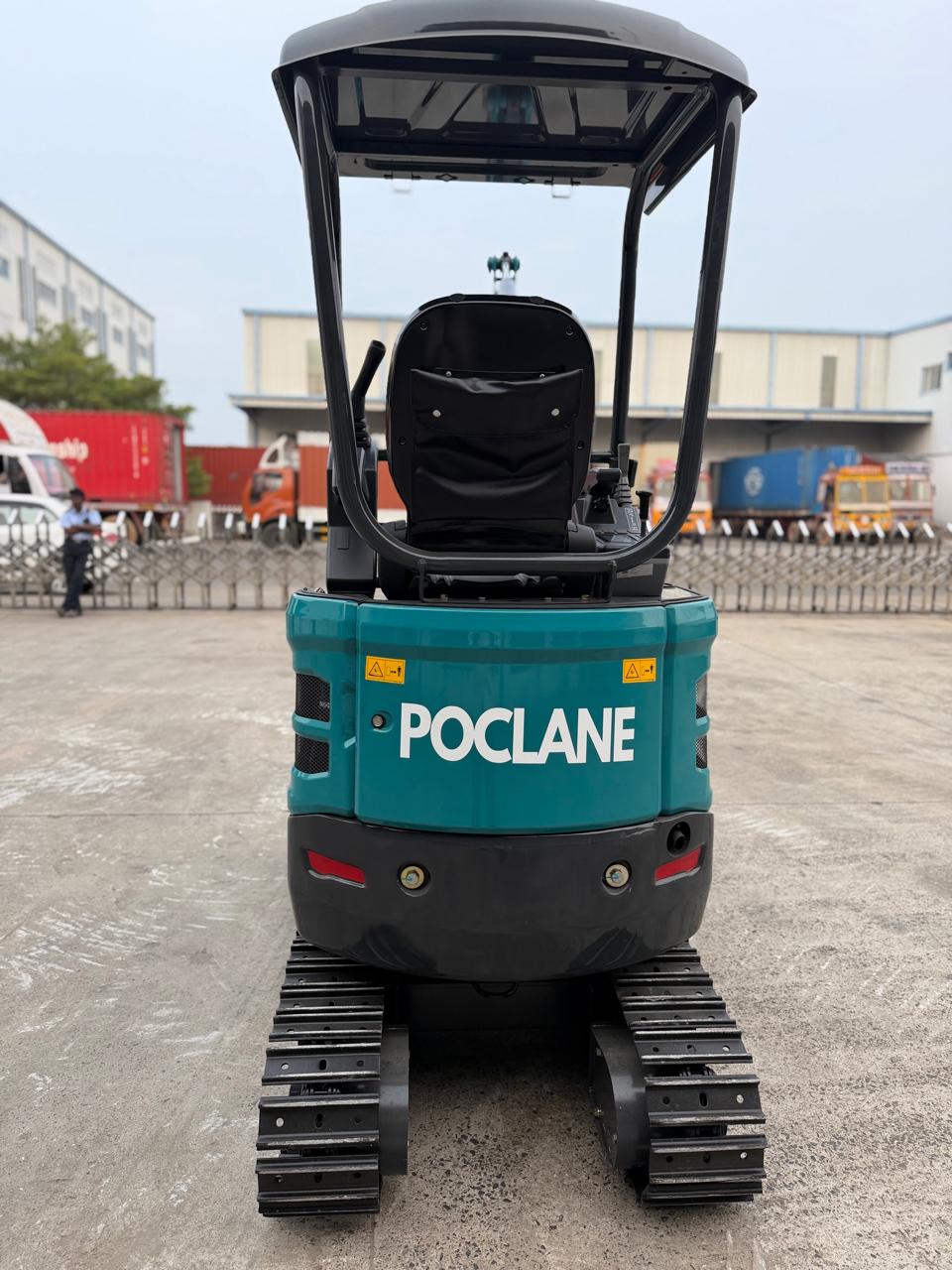

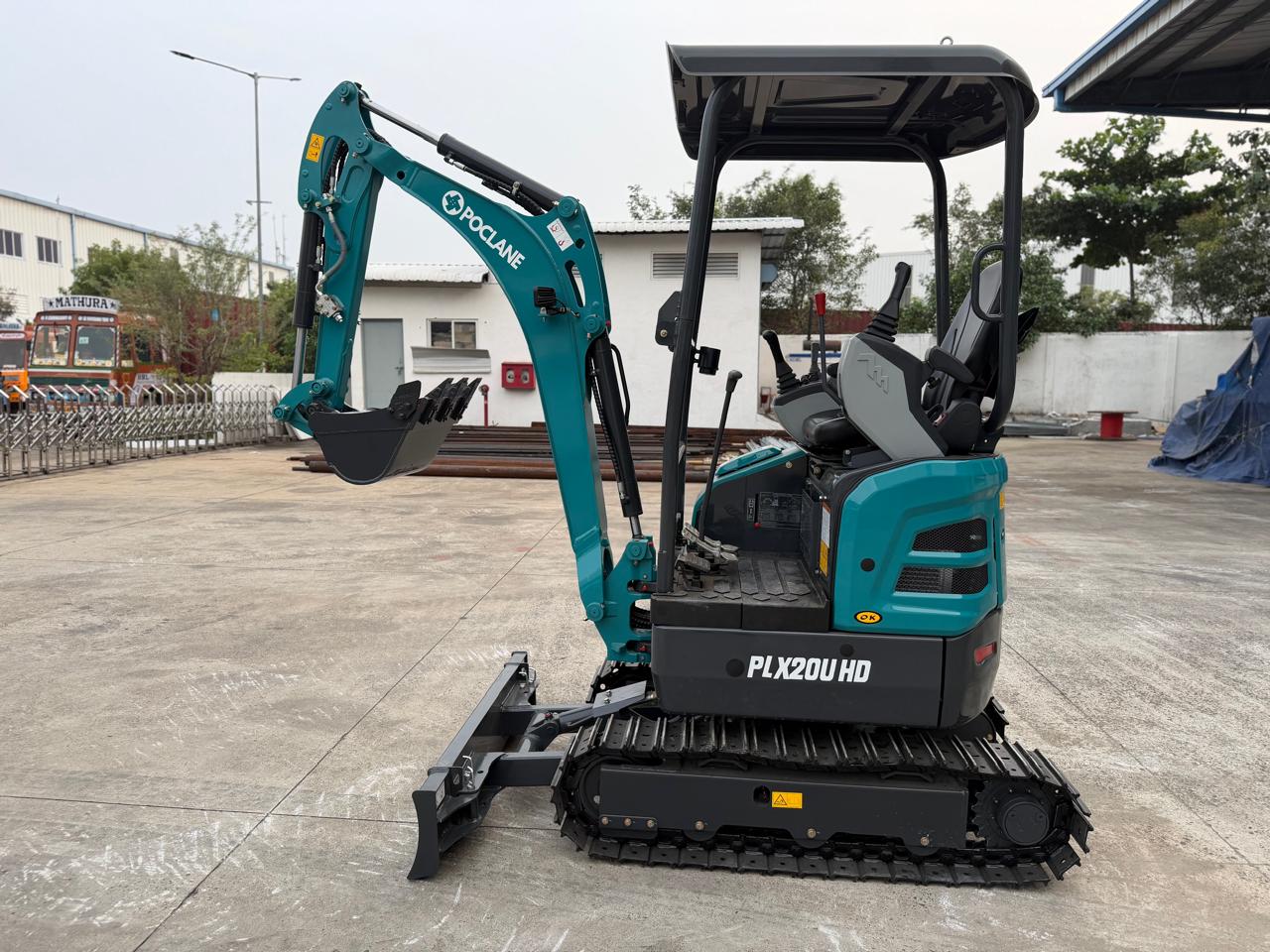

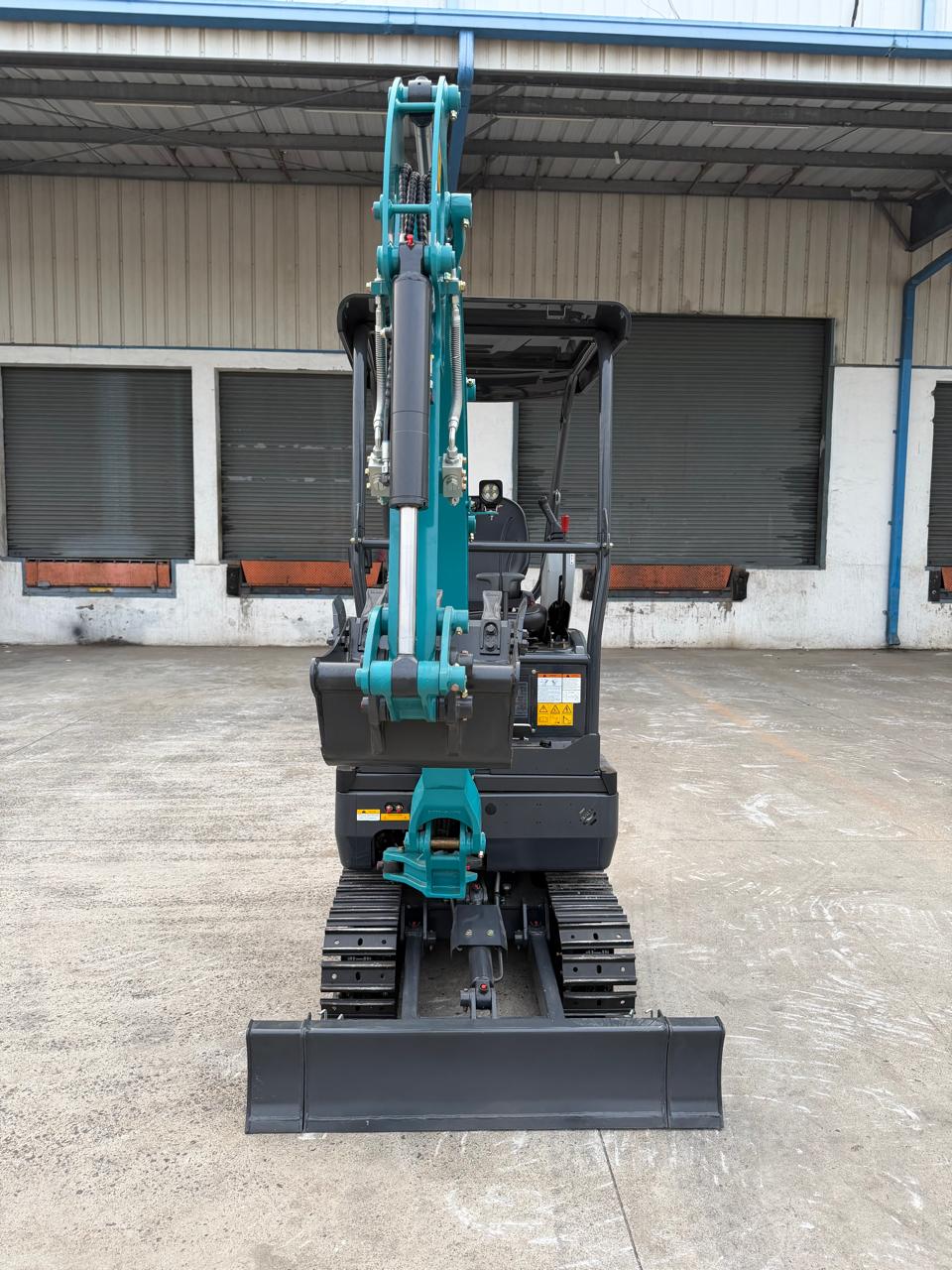

The PLX20U up close — on site and in detail.
Anatomy of the PLX20U
Scroll to walk through every component — each part, and what it does for you.
Operator cabin Canopy · ROPS & FOPS
All-round visibility and operator protection for safe, comfortable shifts.
The numbers that matter
The everyday Poclane. Two-ton class with the proven Kubota D902 engine and a variable track width that adjusts from 990 mm (retracted) to 1,300 mm (extended) — one machine for both narrow access and stable working.
Built for performance & profit
Every feature is engineered to lower your cost per hour and raise your output.

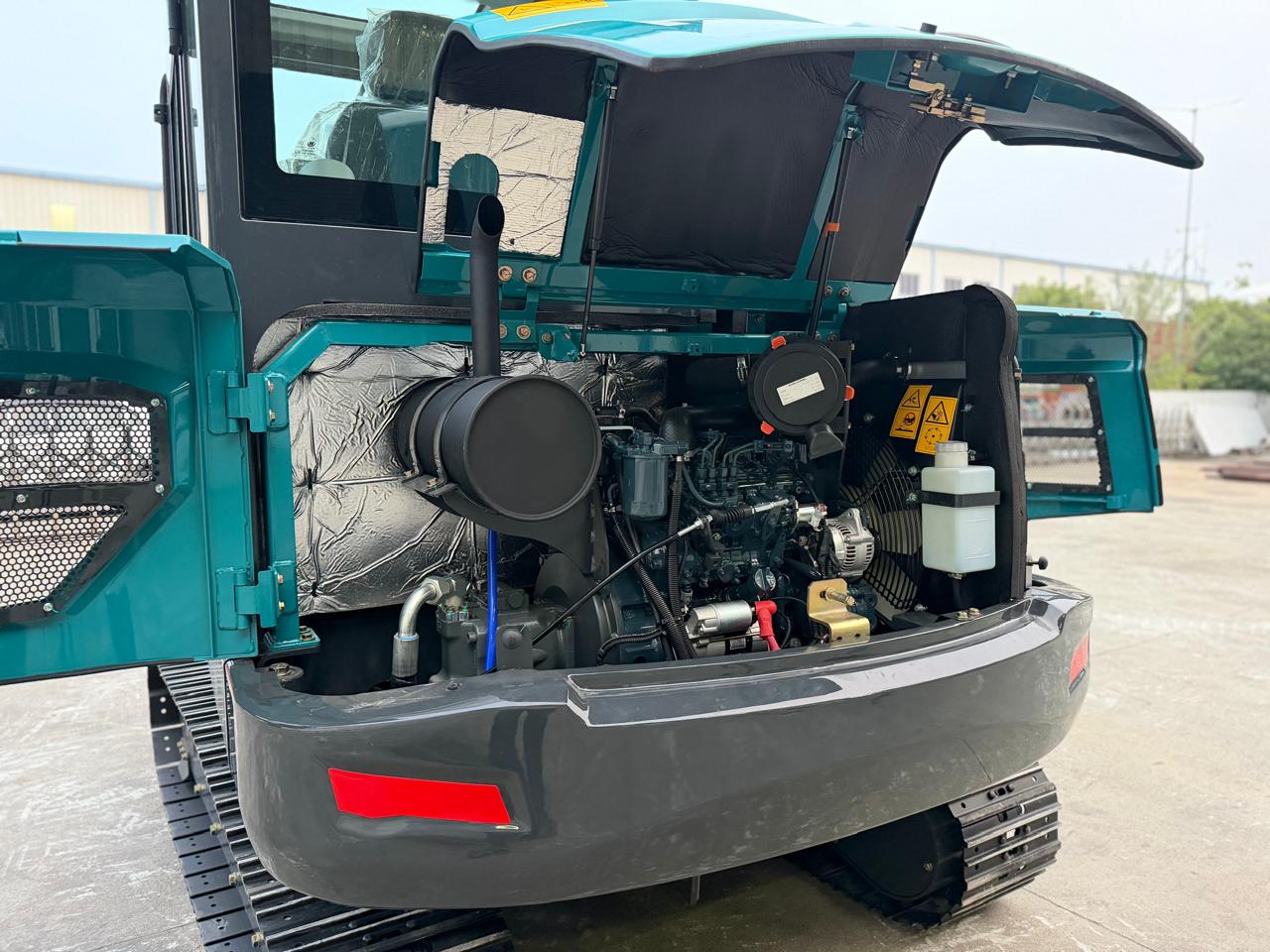

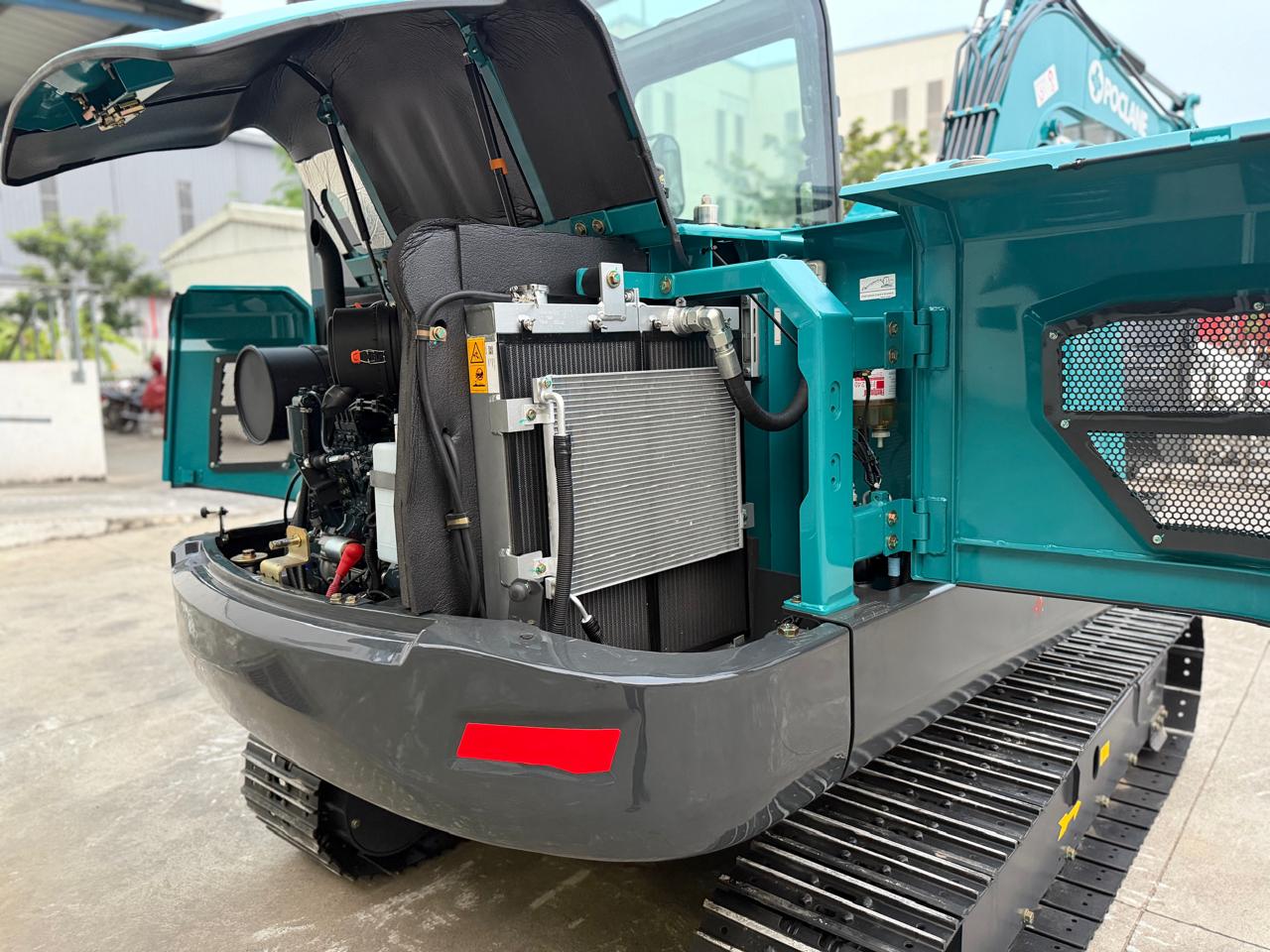

Engine performance

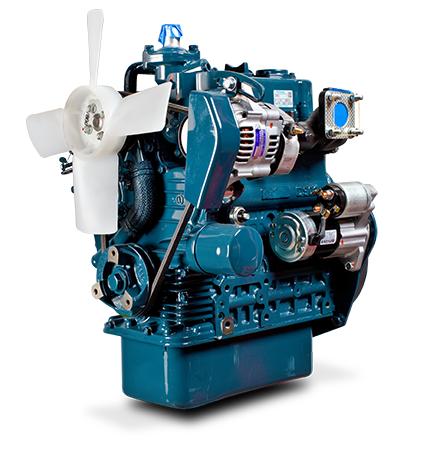

Kubota D902 — 16 HP, 49 Nm @ 1800 RPM. Reliable performance with excellent fuel efficiency and proven Japanese engine reliability.

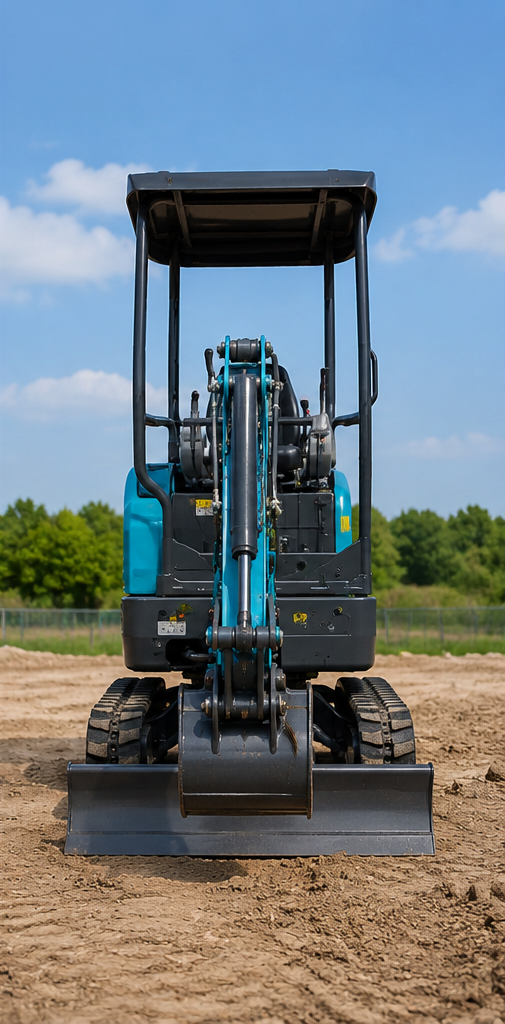

Variable track width
990 mm retracted / 1,300 mm extended — enter tight spaces, then expand for stability. One machine for multiple site conditions.

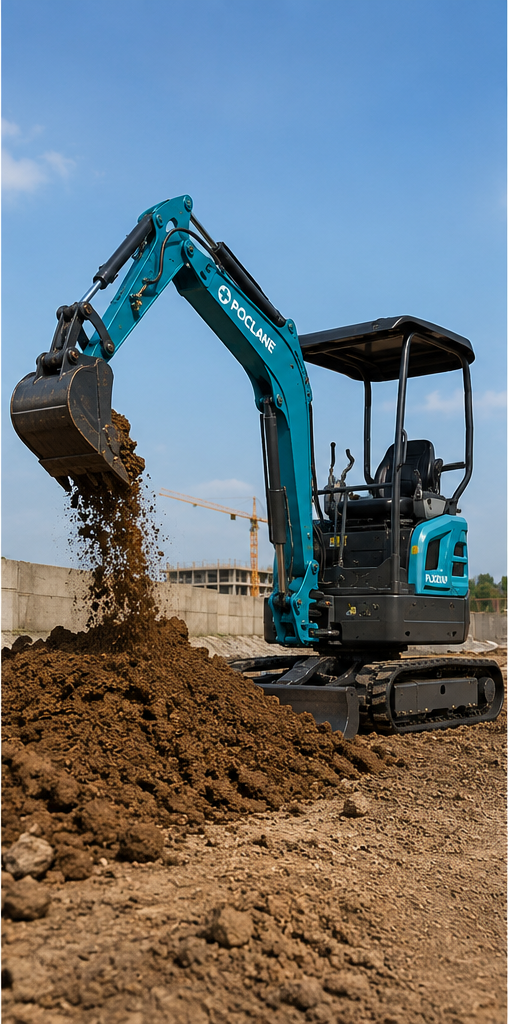

Digging performance
Max digging depth ~7.4 ft. Ideal for trenching, cable laying and foundation work with faster small-job completion.
Safety & comfort
ROPS & FOPS safety structure for enhanced operator protection and confidence in all working environments.
Digging force & output
Bucket force 17 kN · Arm force 10 kN · Dump height 2,445 mm — efficient digging and loading in regular soil conditions.
Low downtime design
Fuel tank 19 L · Hydraulic tank 20 L — efficient fluid management for smooth, uninterrupted operation and higher uptime.
Full specifications
Engine & power
- Engine
- Kubota D902
- Engine power
- 16 HP
- Torque
- 49 Nm @ 1800 RPM
Digging & force
- Max dig depth
- 7.4 ft (2,270 mm)
- Bucket force
- 17 kN
- Arm force
- 10 kN
- Dump height
- 2,445 mm
Dimensions & weight

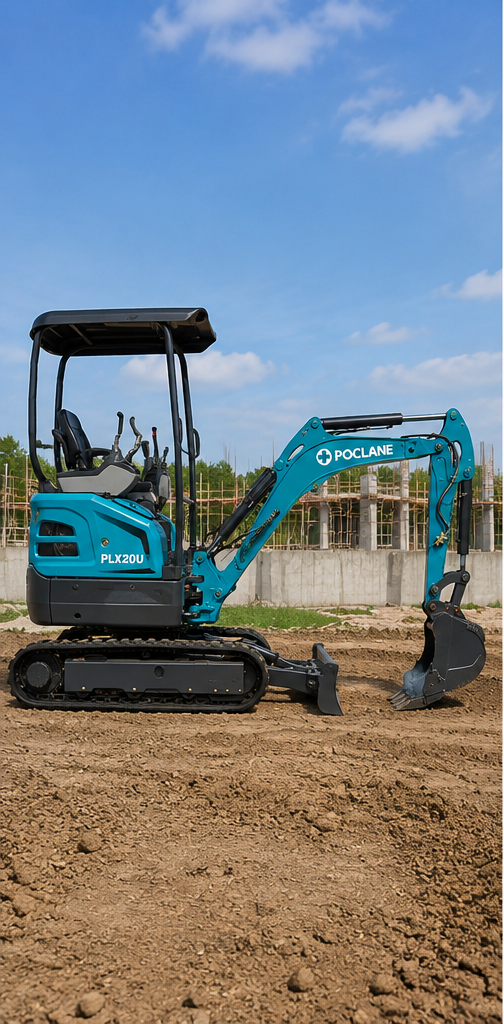

- Operating weight
- 1,890 kg
- Track width
- 990 mm / 1,300 mm
Capacities
- Bucket capacity
- 0.04 m³
- Fuel tank
- 19 L
- Hydraulic tank
- 20 L
- Engine oil
- 3.7 L
Cabin & safety
- Cabin
- Canopy · ROPS & FOPS
Explore the mini excavators
See it in action

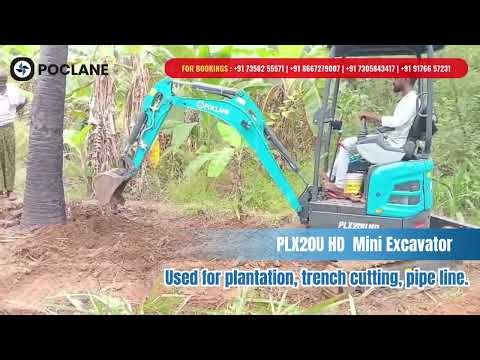

The PLX20U on real job sites — straight from our YouTube, Facebook & Instagram.
